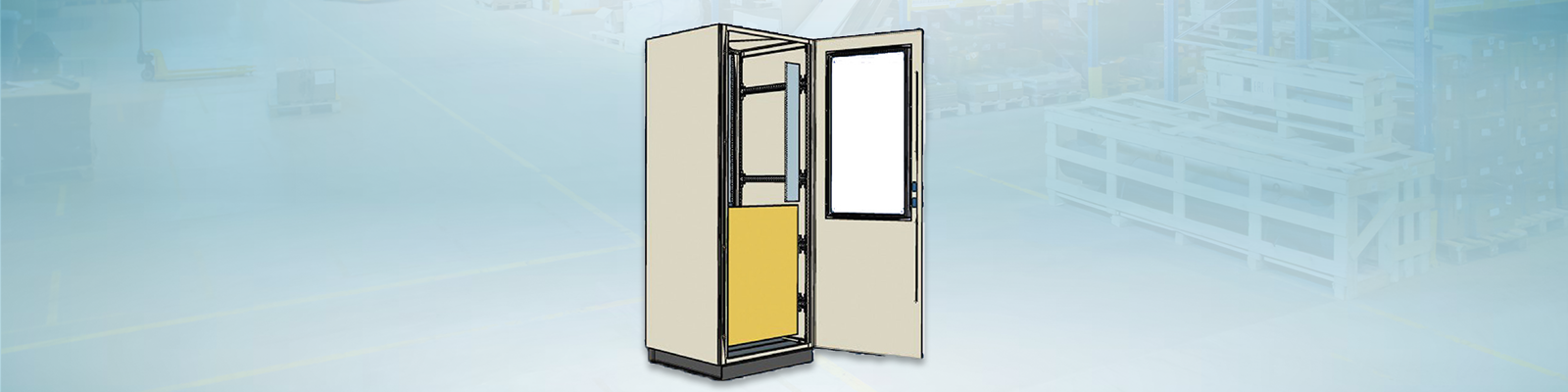

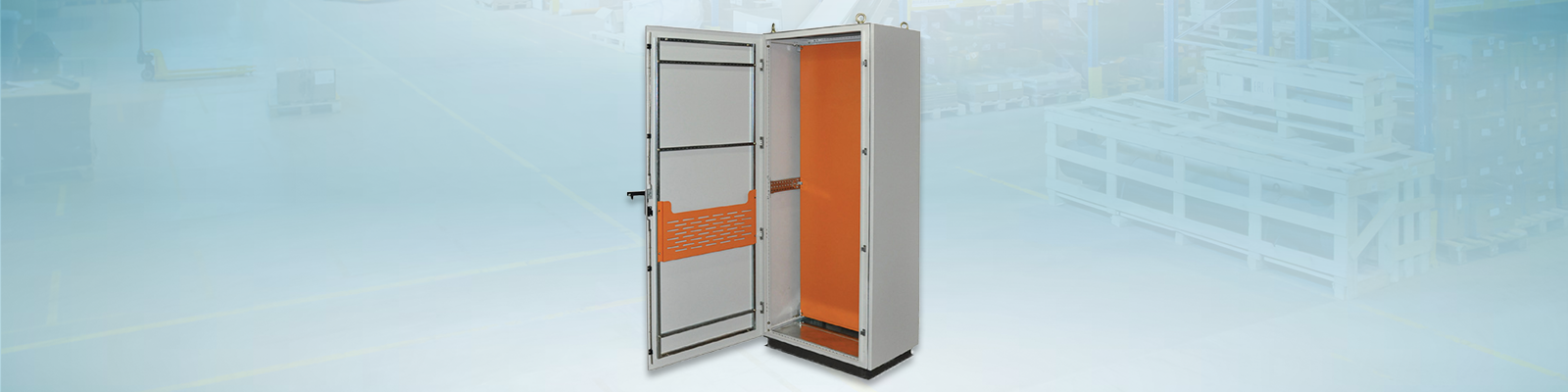

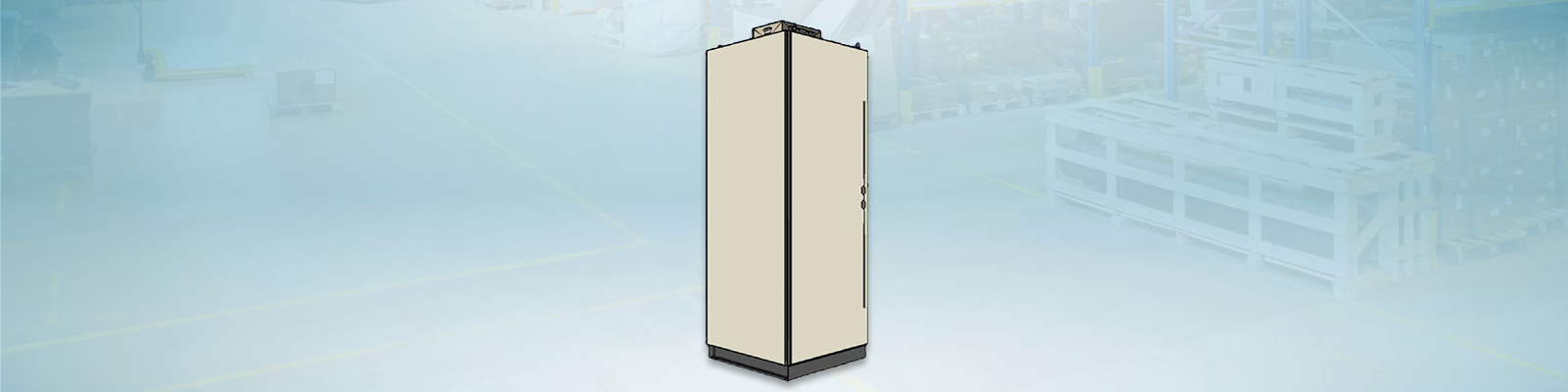

mödulo – Extensible Enclosures
mödulo – Extensible Enclosures
Baying Enclosure Solutions | PLC Enclosure (IP-66)
Features at a Glance
- Bolted Design ensures Superior Surface Finish, Facilitates Easy Handling & Low Transportation Costs.
- Designed for Quick assembly using Standard Tools & Highly Evels of On-Site Flexibility.

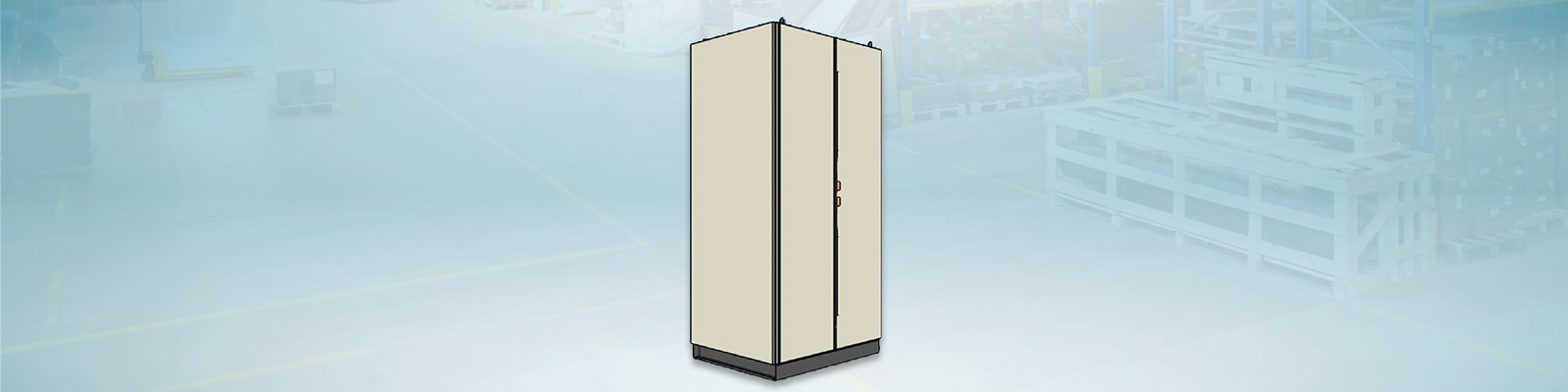

- Single Front & Double Front Design Available.
- Modular Design Aids easy Extensibility on either Side.
- Suitable for both Top or Bottom Cable Entry.
- Safety & Superior Dust Proofing with the use of 4-Point Locks.
- Full or Partial Mounting Plates.
- Full or Partial Glass Door.
- 19” Rack Mounting Arranrement.
- Top Ventilation with Canopy for Fan & Washable Filter.
- Dust-Proofing Levels upto IP54 can be Supplied in Standard Design (Special Designs available for Higher Levels of Ingress Protection).
- Doors Hinging System is Flexible & Doors can Hinge on either Side Depending on Site Requirements.
The Range of Extensible Enclosures is based on a Bolt-on type Modular Construction. These Enclosures are made using Sheet Steel Profiles that are provided with Multiple Holes to ensure Complete Flexibility to the User in Configuring the Enclosure to Suit their Particular Application.
Applications
- PLC Panels
- APFC Panels
- Drive Panels
- Transformer Panels
- Motor Starter Panels
Specifications

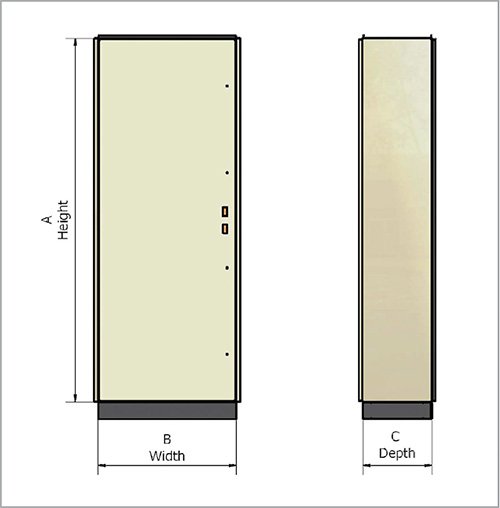

| Extensible Panel Enclosure | |||
|---|---|---|---|
| Sr. No. | A Height mm | B Width mm | C Depth mm |
| 1. | 1800 | 600 | 500 |
| 2. | 1800 | 600 | 600 |
| 3. | 1800 | 600 | 800 |
| 4. | 1800 | 800 | 500 |
| 5 | 1800 | 800 | 600 |
| 6 | 1800 | 800 | 800 |
| 7 | 2000 | 800 | 800 |
| 8 | 2000 | 1000 | 600 |
| 9 | 2000 | 1000 | 800 |
| 10 | 2000 | 1200 | 800 |
| 11 | 2100 | 800 | 600 |
| 12 | 2100 | 800 | 800 |
| 13 | 2100 | 1000 | 800 |
| 14 | 2100 | 1200 | 800 |
| 15 | 2200 | 800 | 600 |
| 16 | 2200 | 800 | 800 |
| 17 | 2200 | 1000 | 800 |
| 18 | 2200 | 1200 | 800 |
