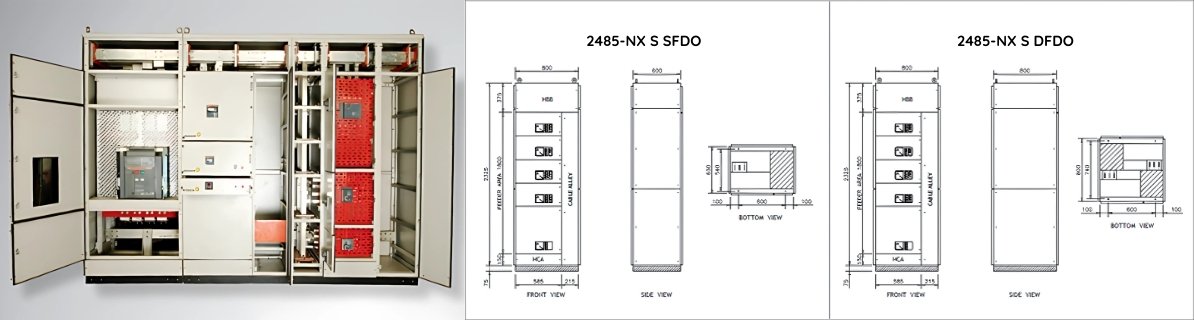

mötrcon : 2485 NX – S
mötrcon : 2485 NX – S
Drawout MCC NX Screw-Jack Type
Features at a Glance
- Type Tested to conform to Leading Global Product Standards. (IEC-61439-1 & 2).
- Fully Compartmentalized (Form IV) Design.
- Drawout Modules have Screw-Jack Mechanism for withdrawal, ensuring Smooth Operation.
- Drawout Modules Plug-In directly on to Vertical Bus Bar, Minimizing Maintenance Issues.
- Vertical Bus is joint-free along the Feeder Area, Therefore is Highly Reliable.
- Spring Loaded Positive Safety Shutter Providing IP 20 Levels of Segregation upon Withdrawal.
- Shock free Operation with Double Stab in earthing in all Drawout Modules.
- Fully Bolted Modular Structural design.
- Drawout Modules have position indication for Test, Service & Isolated.
- Drawout Modules available in 3 Pole for Starter Feeders & 4 Pole for Power Feeders.
- Drawout Module Width has been Increased to accommodate more Material within same Module Height.
- Useful for Reducing Overall Panel Dimensions by making the Modules Stack Compactly.
- Drawout Modules available in Sizes from 200mm to 900mm in Multiples of 100mm in Height.
- Higher Ratings provided using Combination of Two Feeders with Common Door Interlock.
- Feeder Width of 585mm & Depth of 250mm.
- Upto 9 Feeders in One Vertical Stack.
- Feeder Ratings upto 110kw DOL Possible in 900mm.
- Max. possible Feeder Rating upto 150kw DOL in 1800mm.
- Drawout Power & Control Contacts tested as part of Drawout Module during Full Type Test for Temperature Rise, Milli-volt Drop & other related tests in accordance with IEC-61439-1 & 2.
- Drawout Power Contact ratings:
- 63A | 125A | 250A | 400A
- Available in 1 Pole, 2 Pole, 3 Pole & 4 Pole.
- Feeder Width of 585mm with Twin fully offset Control Terminals.
- Minimum Feeder Size of 200mm can accommodate 24 Control Terminals.
- Keeping the Modules Compact and making the Panel Space Efficient.
- Drawout Control Contact Ratings:
- 12A | 16A
- Available in 6-Way & 10-Way Blocks.
Specifications
| STANDARDS | IS 8623, IEC 61439 – 1&2 | ||
|---|---|---|---|
| Insulation Characteristics | Clearance | > 20 mm | |
| Creepage distances | > 20 mm | ||
| Overvoltage category | II / III / IV | ||
| Pollution degree | 3 | ||
| Field condition | Inhomogeneous (Non-uniform) | ||
| Electrical Characteristics | Voltage ratings | Rated operational voltage (U ) e | 415-690 VAC, 24-220 VDC |
| Rated insulation voltage (U ) i | 690 V | ||
| Rated impulse withstand voltage (U ) imp | 6 / 8 kV | ||
| Rated frquency (f ) n | 50 / 60 Hz | ||
| Current Ratings | Main Horizontal busbars: | ||
| Rated current (I ) nA | up to 4000 A | ||
| Rated peak withstand current (I ) pk | up to 176 kA | ||
| Rated short-time withstand current (I ) cw | up to 80 kA, 1s | ||
| Vertical Distribution busbars : | |||
| Rated current (I ) nA | 960A | ||
| Rated peak withstand current (I ) pk | up to 105 kA | ||
| Rated short-time withstand current (I ) cw | up to 50 kA, 1s | ||
| Mechanical Characteristics | Degree of protection | In accordance with IEC 60529: | |
| External | IP 4X/54 | ||
| Internal | IP 2X | ||
| Forms of separation | as per IEC 61439 – 2 | Form III/IV | |
| Dimensions | Height (mm) | 2100, 2200, 2400 | |
| Width (mm) | 600, 700, 800, 900, 1000, 1100 (ACB section) | ||
| 850 (Outgoing section) | |||
| Depth (mm) | 600, 800, 1000, 1200 (ACB section) | ||
| 600, 800, 1000, 1200 (Outgoing section) | |||
| Surface Treatment | Structure | GI-280 / powder coated / painted | |
| Internal Components | GI-280 / powder coated / painted | ||
| External Components | Powder coated / painted | ||
| Resistance to Connection | Damp heat cycling test | IEC 60068-2-30 | |
| Salt mist test | IEC 60068-2-11 | ||
| Plastic Components | Flame retardant, self-extinguishing, Halogen-free | IEC 60695-2-10, IEC 60695-2-11 |
