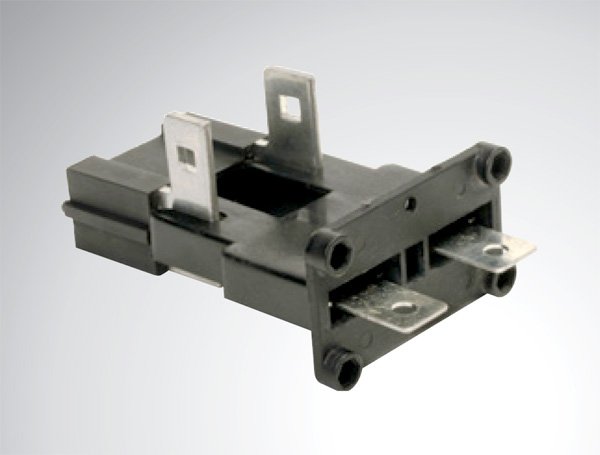

mötrcon : PIC – SS – 63A – 2P
mötrcon : PIC – SS – 63A – 2P
Features at a Glance
- Contact Elements designed to achieve Low Operating Temperature.
- Tin Plated Phosphor Bronze Contacts for Engagement with Bare/Tinned Copper outgoing Contacts.
- Chemical Compatibility ensures Minimal Galvanic Corrosion.
- This Spring-Less Contact is Designed to ensure Minimum Milli-Volt Drop across the Point of Engagement of Contact.
- Used on Outgoing Side only, and Designed to Handle the Current Flow in Case of Conditional Short Circuit.
- Internally Shrouded to Prevent Phase to Phase Faults.
- Electrically, Mechanically & Thermally Adequate Housing Moulded Out of Glass Reinforced Fire Retardant Plastic (UL 94-V0 Grade).
Specifications
| STANDARDS | IS 8623, IEC 61439 – 1&2 | |
|---|---|---|
| Physical Characteristics | Body Material: Glass Reinforced Polyamide 6.6 | |
| Contact Material: Silver Plated Copper Contacts | ||
| Conductor Temp: 105°C* | ||
| Flammability: UL94-VO | ||
| Glow Wire: 960°C | ||
| Electrical Characteristics | Voltage Ratings | Equipment Voltage Ue: 690V |
| Insulation Voltage Ui: 690V | ||
| Impulse Voltage Uimp: 8kV | ||
| Current Rating | 63 A |
